Faster, More Efficient, and Highly Adaptable Light Modulation
UltraSpeed V‑Modules

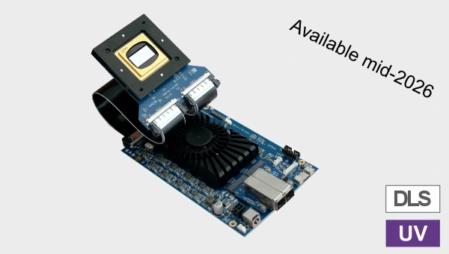

DLP® Subsystem V‑9903 UV
Chipset: | DLP991UUV & DLPC964 |
Wavelength: | UV (343 – 410 nm) |

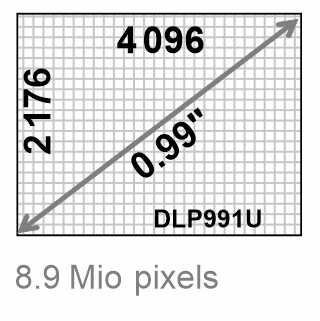

Resolution: | 4 096 x 2 176 (4K) |

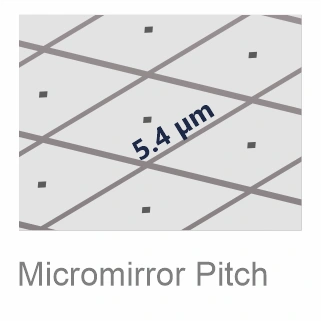

Micromirror Pitch: | 5.4 µm |
Max. Switching Rate (Full Array): | 12 400 Hz |
Flexible Cable Connection: | 4 x 200 mm (7.9") |
Alternative: | 300 mm (11.8"), 400 mm (15.7") |
On-Board RAM Capacity (4-Bit Patterns): | 16 GB DDR4 (15 420) |
Alternative: | 32 GB DDR4 (30 840) |
PC Interface: | USB 3.0, PCIe Gen3 x8 |
Software: | ALP-5.1 Controller Suite (API) |
Camera Port (DLS ready): | 1x |
If you prefer alternative features, please select them in the form below. To receive a quote for the product with standard features, please fill out the contact data only and send us your request.
Your Product - Standard Features
UltraSpeed V-Module V-9903 UV
- 4x 200 mm (7.9") flexible cable connection between DMD and controller board
- 16 GB DDR4 on-board RAM capacity
