Accessories for Spatial Light Modulators
STAR Core
STAR Core
Options:

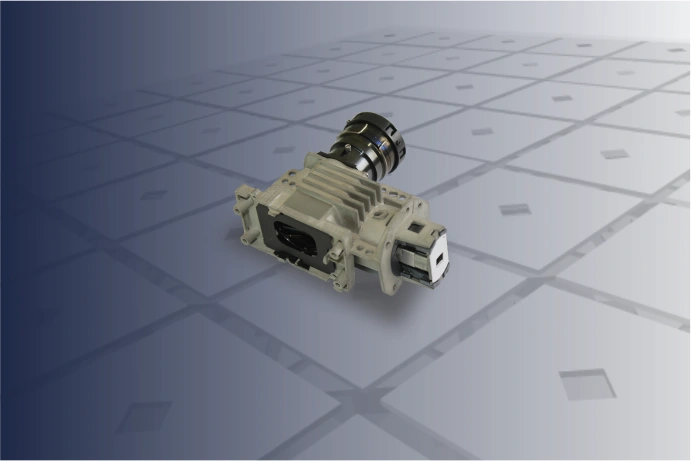

STAR Core is a compact optics designed for up to 0.7” diameter orthogonal pixel DMD arrays with 12° tilt angle. The DMD illumination is well homogenous thanks to an integrator rod that acts as a convenient light input port. Different types of light sources can be adapted: lamps, LEDs, fibre bundles, lasers. Based upon the patented ZEISS design, the STAR Core optics is produced by ViALUX in Germany.
The STAR Core optic offers leading edge performance in a small package and at affordable price. The rugged design is proved reliable in industrial and medical environment for 3D measurement solutions, augmented reality and intelligent lighting. STAR Core can be used for DLP7000, DLP6500 and DLP650L DMD formats.

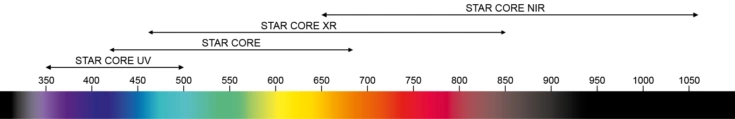

There are four models available:
Optic | Wavelengths | |
STAR Core UV | 350 - 500 nm | |
STAR Core VIS | 420 - 680 nm | |
STAR Core XR | 460 - 850 nm | |
STAR Core NIR | 650 - 2 000* nm | |
* specified for 2 000 nm, tested up to 1 064 nm
The different optical modules are suitable for Hi-Speed V-7000, SuperSpeed V-7001, SuperSpeed V-6501 and SuperSpeed V-650L NIR.
Further Accessories
Wide Angle Lens
Wide Angle Lens is an accessory for:- STAR-07 2.0 (VIS and RGB)
- STAR 3.0 EVM (VIS)
- STAR-07 3.0 (VIS and RGB)
Camera Extension
For STAR-07 3.0 are two camera extensions available. It is possible to connect the projection unit with one or two cameras. The projector runs without any camera extension as well.
Camera specifications: V-Cam 2.4 | 1 920 x 1 200 Pixel | 2.4 Mpixel | 5.9 µm | 164 fps
Projection Modules - Information for Download
Datasheets of STAR Core (accessories for projections modules)
- STAR Core (PDF)
- PRIME Core (PDF) (coming soon)
- STAR-07 3.0 (PDF)
- STAR-07 2.0 (PDF)
- STAR-07 2.0 Option RGB (PDF)
- STAR 3.0 EVM (PDF)
- Overview projection modules (PDF)
