Projection Module
Based on Digital Light Processing (DLP)
STAR 3.0 EVM - Monochrome LED Projection Modules
Options:

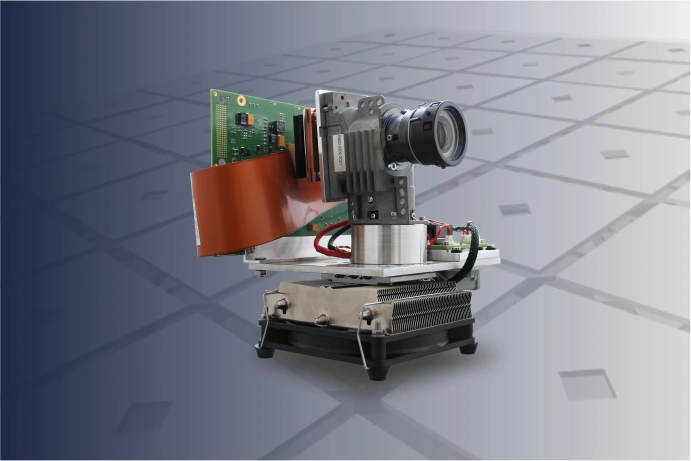

STAR 3.0 EVM monochrome LED light engine is a high performance DLP® projector based upon the Texas Instruments micromirror technology and designed to serve in demanding industrial or research applications.
STAR 3.0 EVM is available with the following V-Modules:
- V-7001 VIS/UV
- V-6501 VIS
- V-650L NIR

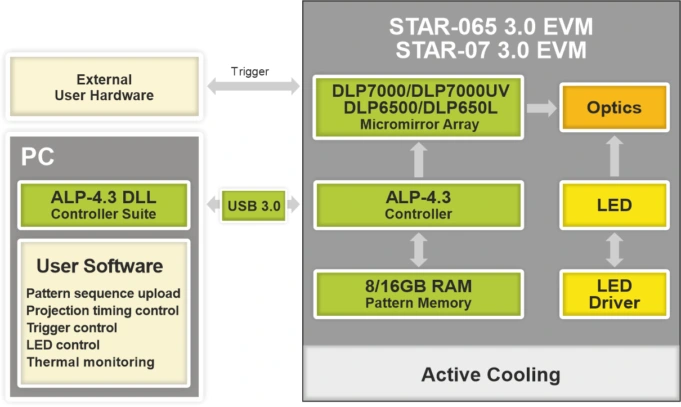

System Architecture
The central control unit of STAR 3.0 EVM is USB 3.0 connected and realizes pattern upload, display, and synchronization. An integrated trigger facility supports a wide voltage range at its opto-coupler interface and is software programmable. The digital driver for the LED light source gives convenient access to power setting and temperature reading for thermal management.
The STAR 3.0 EVM monochrome LED light engines are based upon the STAR CORE optics, a cooling system, the ALP‑4.3 software, and integrate a high-power LED including the ViALUX LED driver for up to 24 A.
The following LED wavelengths are available for:
- λ [nm] = 405 / 460 / 525 / 615 / White (DLP6500)
- λ [nm] = 730 / 850 / 940 (DLP650LNIR)
- λ [nm] = 405 / 460 / 525 / 615 / White (DLP7000)
- λ [nm] = 365 / 385 / 405 (DLP7000UV)
The ViALUX LED driver of the STAR 3.0 EVM is controlled by I²C commands for setting the LED current and reading the LED thermistor output and seamlessly integrates with V‑Modules.
Projection Modules - Information for Download
Datasheets of Projection Modules
- STAR-07 2.0 Option RGB (PDF)
- STAR-07 2.0 (PDF)
- STAR-07 3.0 (PDF)
- STAR 3.0 EVM (PDF)
- Overview Projection Modules (PDF)
